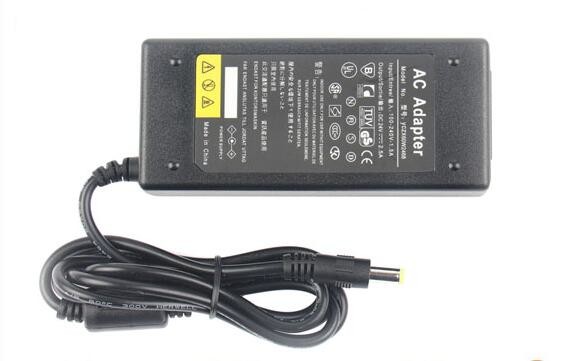

12v 3a power adapter 36Watt AC Dc adapter for LED strips CCTV camera with CE UL SAA
Product Description:
| Output | DC output voltage | 5V | 12V | 24V |
| Output voltage tolerance | ±5% | ±5% | ±5% |
| Rated output current | 5A | 3A | 1.5A |
| Output current | 0~5A | 0~3A | 0~1.5A |
| Output power | 25W | 36W | 36W |
| Ripple and noise | mVp-p | 100mVp-p | 240mVp-p |
| Line regulation | ±1% | ±1% | ±1% |
| Load regulation | ±5% | ±5% | ±5% |
| Voltage adj. range | Fixed |
| Setup rise hold up time | 500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load |
| Input | Input voltage range | 90~264VAC 135~370VDC |
| AC input current | 0.7A/100VAC |
| Efficiency | 75% | 80% | 83% |
| AC inrush current | 45A/230VAC |
| Leakage current | 0.75mA/240VAC |
| Frequency range | 47~63Hz |
| Protection characteristic | Over load protection | 110%~150%rated output power |
| Protection mode: Hiccup mode, auto-recovery after fault condition is removed. |
| Environment | Working temperature | 0℃~+50℃ |
| Working humidity | 20%~90% RH non-considering |
| Storage Temp,humidity | -20℃~+85℃,10~95%RH |
| Temp.coefficient | ±0.03% /℃(0~50℃) |
| Vibration | 10~500Hz, 2G 10min./1 cycle ,period for 60 min. each along X Y Z axes |
| Safety | Withstand voltage | I/P-O/P:3000 VDC |
| Safety standards | EN60950 |
| Insulation resistance | I/P-O/P:100M Ohms/500VDC/25℃/70%RH |
| EMI conduction&radiation | Compliance to EN55024, EN61000-3-3 |
| EMS immunity | Compliance to EN61000-3-3 |
| Harmonic current | Compliance to |
| Others | Weight/Packing | 0.22kg/50PCS/12.5kg |
| Dimension | 115*48*30MM |
| Connector | Plug | 5.5X2.1mm 5.5X2.5mm |
| Cable | 1.2m |
Description:
1. input voltage range of AC90-264V. wide voltage input, comply with the global standard.
2. input voltage frequency: 47-63Hz
3. output voltage: according to customer requirements
4. output voltage adjustable rate: 1%
5. rated output current can be customized
6. current output range 0-5A
Protections:
1) over voltage protection: 120%min
2) over current protection: 120%min
3) over protection
4) Short-circuit protection: automatic recovery
5) Load regulation: ±5%
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5Insulation resistance: DC 500V 100MΩ (minimum)
Advantages:
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave
Our Services:
1.100% more than 2 Hour Burn-In Test
2.100% 4 times electrical performance test
3.100% dropping test from 6 surface
4.100% Solder ball vibration test
5.100% Hi-Pot Test
6.0.3% RMA F.O.C
Applications:
100-240Vac 50-60Hz AC DC Adapter 12V 3.5A KC
can be applied in security equipments, portable equipments, telecommunication equipments, consumer equipments, and other equipments.
Security equipment: monitoring camera, hard disk video recorder, security system, control equipment, monitoring equipment, etc.
Portable equipment: portable DVD, radio, mobile hard disk box, portable tools, charger, lithium ion battery, game machine, language repeater, walkman, digital products, tablet PC, etc.
Telecommunication equipment: router, microprocessor system, ADSL equipment, telephone composite aircraft, hub, telecommunications terminal equipment, cell phone, etc.
Consumer equipment: LCD TV, HD player, DVD players, digital photo frame, electronic refrigerator, acoustics, LED lamps and lanterns, small power
